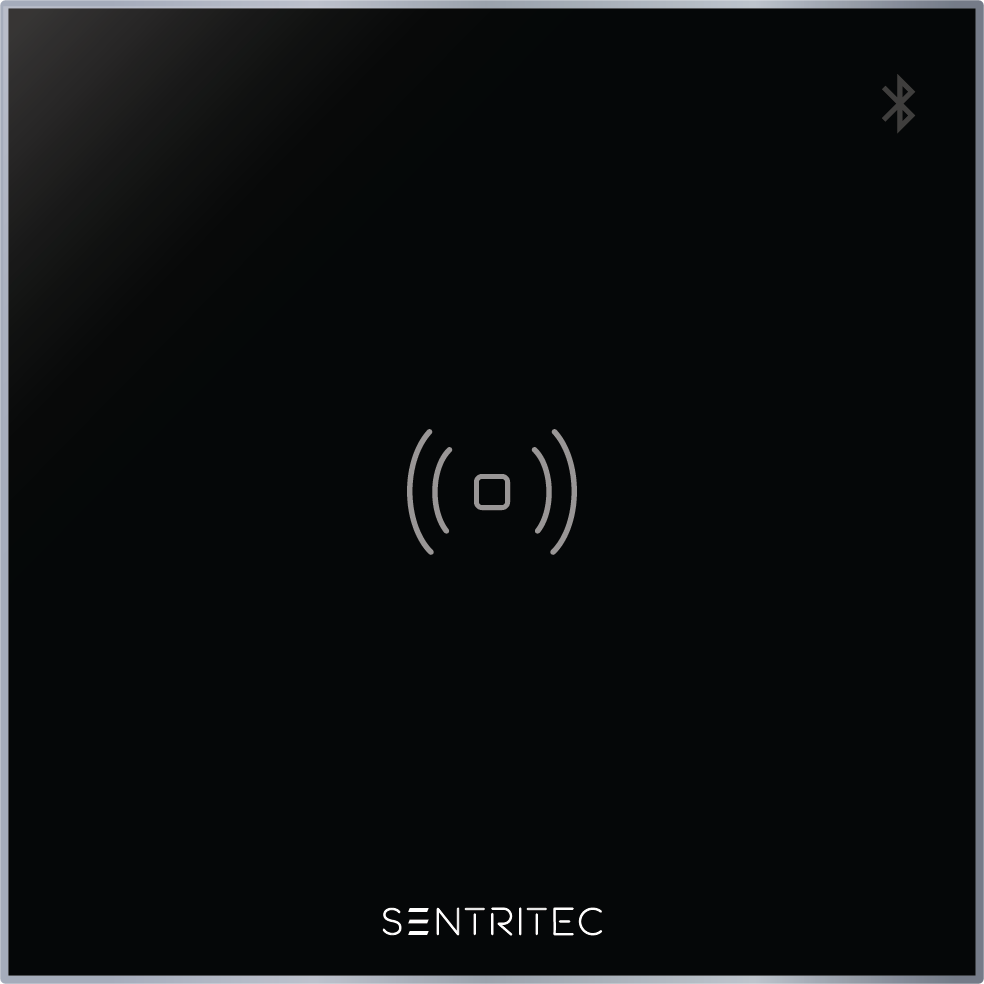

Sentritec Access Core door reader

Door Reader

Access Core

A door controller and card reader in one device, supporting RFID cards, NFC, and Bluetooth mobile unlock for secure and convenient access control.

Card · NFC · BLE
Bluetooth Mobile Unlock
IP65 & IK07 Rated
Get Started

Product Specification

Access Core dimensions, 86 × 86 mm

Power & Connectivity

Power inputIEEE 802.3af PoE or 12V DC, 1A
ConnectivityEthernet, 10/100Mbps RJ-45 connector for network / PoE
Power consumption10W maximum
WiegandSupport

Compliance & Rating

ComplianceCE, FCC, SIRIM
RatingIP65, IK07

Compatibility

ControllerBuilt-in
Maximum users20,000
Card capacity20,000
Event logs100,000
Low frequency card125kHz proximity card
High frequency cardNFC, MIFARE DESFire EV1, EV2, EV3, MIFARE Classic, FeliCa
Mobile credentialsSentritec Pass app (BLE)

General

Front panelToughened glass
FrameAluminum alloy
Speaker1
Dimensions (H × W × D)86 × 86 × 33mm
Weight300g
Operating temperature-20°C to +55°C
Operating humidity10–90% RH, non-condensing
Storage temperature-30°C to +70°C
Tamper detectionYes
Mounting optionWall-mount / flush-mount
Input2
Relay outputYes
Warranty3 years
