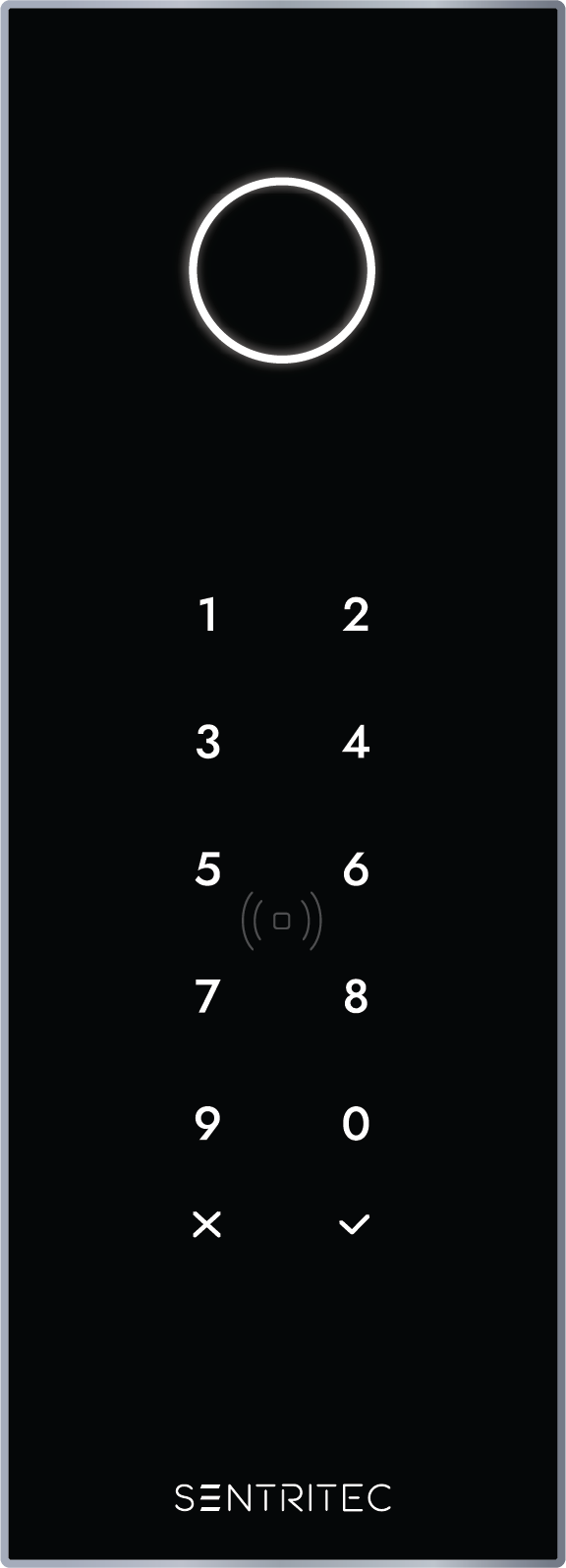

Sentritec Access Core Pro door reader

Door Reader

Access Core Pro

A slim multi-credential access control with RFID, NFC, Bluetooth mobile unlock, QR code, and PIN code access, designed for secure and flexible door unlocking.

Card · NFC · BLE · QR · PIN
Bluetooth Mobile Unlock
2FA Card + PIN
IP65 & IK09 Rated
Get Started

Product Specification

Access Core Pro dimensions, 50 × 140 mm

Power & Connectivity

Power inputIEEE 802.3af PoE or 12V DC, 1A
ConnectivityEthernet, 10/100Mbps RJ-45 connector for network / PoE
Power consumption10W maximum

Compliance & Rating

ComplianceCE, FCC, SIRIM
RatingIP65, IK09

Compatibility

ControllerBuilt-in
Maximum users20,000
Low frequency card125kHz proximity card
High frequency cardNFC, MIFARE DESFire EV1, EV2, EV3, MIFARE Classic, FeliCa
Mobile credentialsSentritec Pass App (BLE)
PINFor temporary keys or 2FA
QR codesYes

General

Dimensions (H × W × D)140 × 50 × 27mm
Weight800g
Operating temperature-20°C to 55°C
10–90% RH, non-condensing
Tamper detectionYes
Mounting optionWall-mount / flush-mount
Input2
Relay outputYes
Warranty3 years
