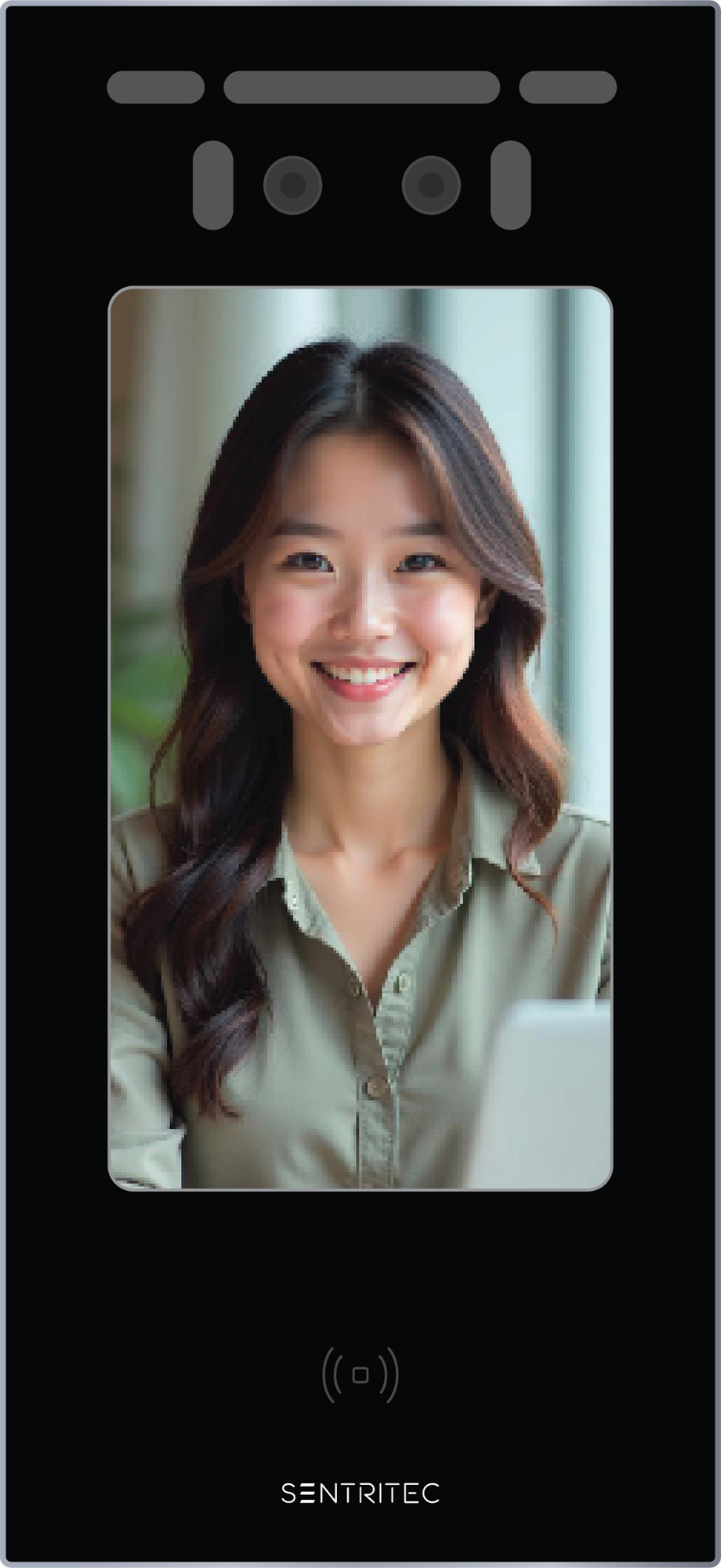

Sentritec — Face Core Face Recognition Terminal

At a Glance

5-inch touchscreen LCD
Linux operating system
2MP dual-lens camera with WDR
Face recognition with dual-camera liveness detection
Multiple access methods: Face, Card, PIN, BLE, QR code, and NFC
Two-way audio communication over IP networks with echo cancellation
Supports SIP and ONVIF
Wall-mounted installation
IP65 and IK10 rated
Optional mask detection and body temperature detection

Power & Connectivity

Power inputIEEE 802.3af PoE or 12V DC, 1A

ConnectivityEthernet, 10/100Mbps RJ-45 connector for network / PoE

Power consumption10W maximum

WiegandSupport

RS485Support

Compliance & Rating

ComplianceCE, FCC, SIRIM

RatingIP65, IK10

Compatibility

ControllerBuilt-in

Maximum users20,000

Face capacity20,000

Card capacity20,000

Event logs50,000

Low frequency cardNot supported

High frequency cardNFC, MIFARE DESFire EV1, EV2, EV3, MIFARE Classic, FeliCa

Mobile credentialsSentritec Pass app (BLE)

PINFor temporary keys or 2FA

QR codesYes

Face UnlockLess than 0.2s identification speed at 99.7% accuracy

General

Body materialPlastic

Camera2MP dual-lens camera, WDR

Wide-angle camera62° horizontal, 36° vertical

Dimensions (H × W × D)192 × 88 × 24mm

Weight600g

Operating temperature-20°C to +55°C

Operating humidity10–90% RH, non-condensing

Tamper detectionYes

Mounting optionWall-mount

Mounting height1.5m

Input1

Relay outputYes

Warranty3 years

Display

Display5-inch IPS LCD with capacitive touch screen

Display resolution1280 × 720 pixels
